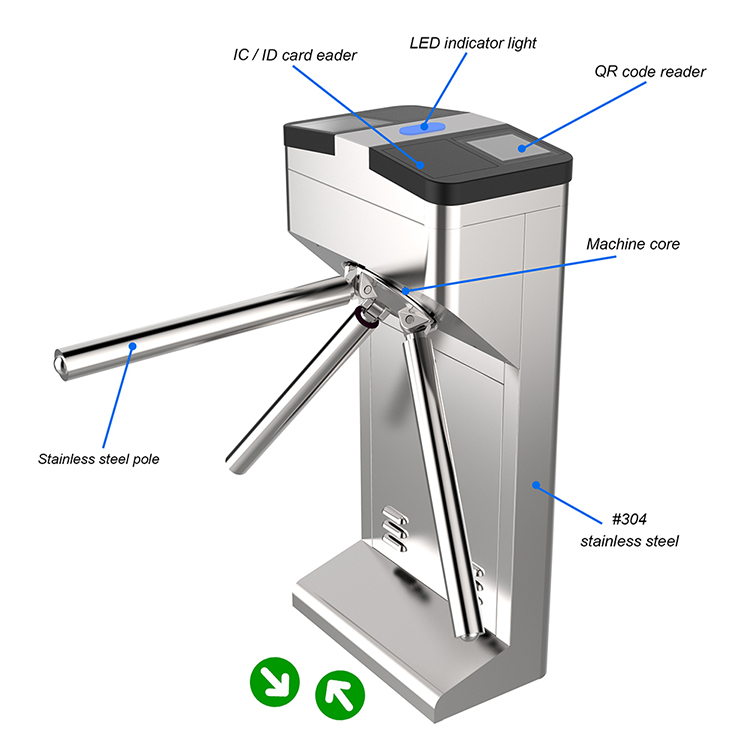

Bi Directional Tripod Turnstile Gate Self - Recovery And Auto Re-Set Function

1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection.
   When power on, the arm can lift by hand.

6. Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency

7. Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing.

8. It can be used for intelligent control and management of the passage after equipped with different access control system.

9. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

Features and Benefits

1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
3. Display has been in use for statistics and numbers
4. With voice and strobe light alerts
5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
8. The barrier can be set to delay closing in 1-60s after a valid card-reading

OPERATING MODES

1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
