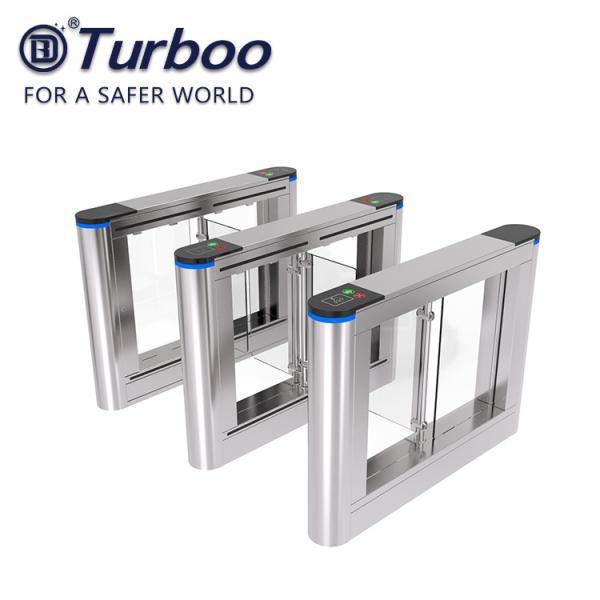

Waist High Fast Speed Gate Turnstile Biometric Access Control Convenience Settings

Waist high fast speed lane gate swing barrier turnstile automatic

Description

• Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
• The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
• It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
• In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
• Optical Turnstiles are suit for elegant and luxury entrance solutions.

Materials

• Housing:Made in stainless steel AISI 304 o AISI316.

• Barrier swings-Acrylic, PC, stainless steel frame.

Features and Benefits

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. DC Brushless Motor, Maintenance Free
3. On-line or off –line mode(optional)
4. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5. With direction indication, guiding passenger to entry and exit.
6. Self automatic locking to prevent forcedly passing without the card
7. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8. Light and sound alarm indication function, preventing illegal entry or irregular passing
9. Powerful on-line intelligent control mode, facilitating you:
10. To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
11. To set up operation mode for passage entry and exit.
12. To read card with multiple times, the special function meeting the application requirements of a particular site.
13. To set up the card reading with or without memory.
14. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
15. Setting function humanized for reset of over time passing.
16. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
17. The processing mode in emergency or in special conditions.
18. Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.

Our advantage

• 90%of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly

• We use Baoxin Stainless steel, the best brand in China

• Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”

• Technology Parameters
  Size	1400×185×1025mm
  Unlock time	0.2s
  Pass rate	35p/m
  Pass width	600~900mm
  Input	100V~240V
  Driving voltage	24V
  Environment	-25~+70℃
  Power consumption	35W
  Input	Dry contact

• Product details
