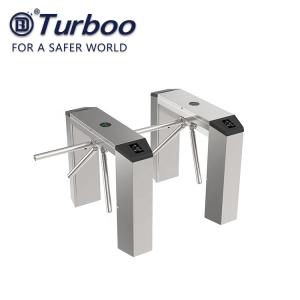

0.2S RS485 RFID Tripod Turnstile Gate For Office Building

  • 1
  • 2
  • 3

Brand Name : Turboo

Model Number : D142

Certification : CE

Place of Origin : Guangdong China(Mainland)

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 7 days

Packaging Details : Wooden Case Package

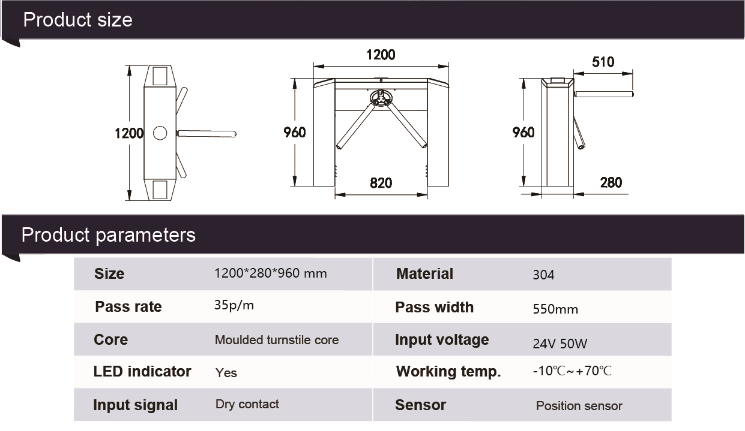

Product Size : 1200*280*960mm

Pass Width : <=550mm

Material : 1.0mm 304 SUS Hairline #400

Input Voltage : 100-240V

Working Voltage : 24V

Pass Rate : 30-35 persons/minute

Operating time : 0.2 Seconds

MCBF : 5,000,000 cycles

Communication interface : RS485,Dry Contact

Mechanism : Solenoid Lock

Working Temperature : -25 to +70

Contact Now

RFID Tripod Turnstile Gate , 100-240V Tripod Barrier Gate for Office Building

Feature:


• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Adjustable time out delay

Our advantage:

1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now

0.2S RS485 RFID Tripod Turnstile Gate For Office Building0.2S RS485 RFID Tripod Turnstile Gate For Office Building0.2S RS485 RFID Tripod Turnstile Gate For Office Building0.2S RS485 RFID Tripod Turnstile Gate For Office Building
